Description

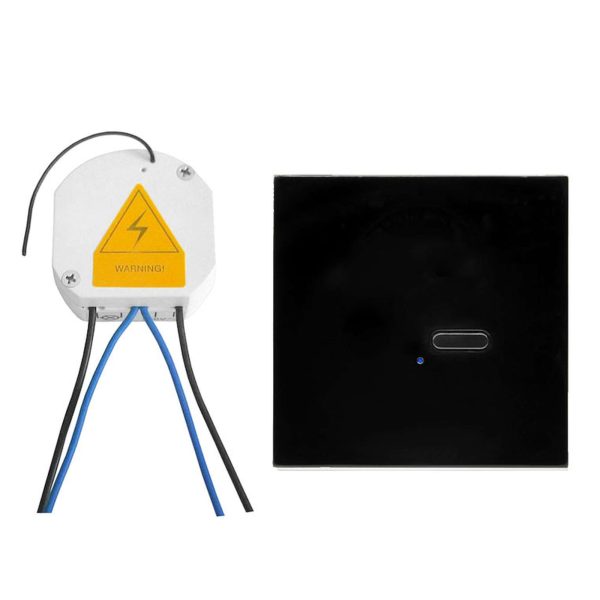

The Wise Switch Receiver Kit is a single circuit switching unit rated at 3000 watts. It comes complete with a 1 button WiseStyle Switch. It cannot be dimmed.
The receiver is small enough to be placed in many locations, for example, in the ceiling through a downlighter hole, in the wall either through it, behind a recessed light fitting or in a surfaced mounted fitting. The receiver should be placed in a suitable insulated box.
It can be fitted into a small waterproof box to allowed it to be used outside for your garden lighting, garage doors and water features.
The receivers are designed to be simple to install, easy to use and most importantly, reliable. Any of the Wise 868 switches can be used with this receiver, including the remotes and modules. This receiver can also be used in conjunction with the other Wise receivers.

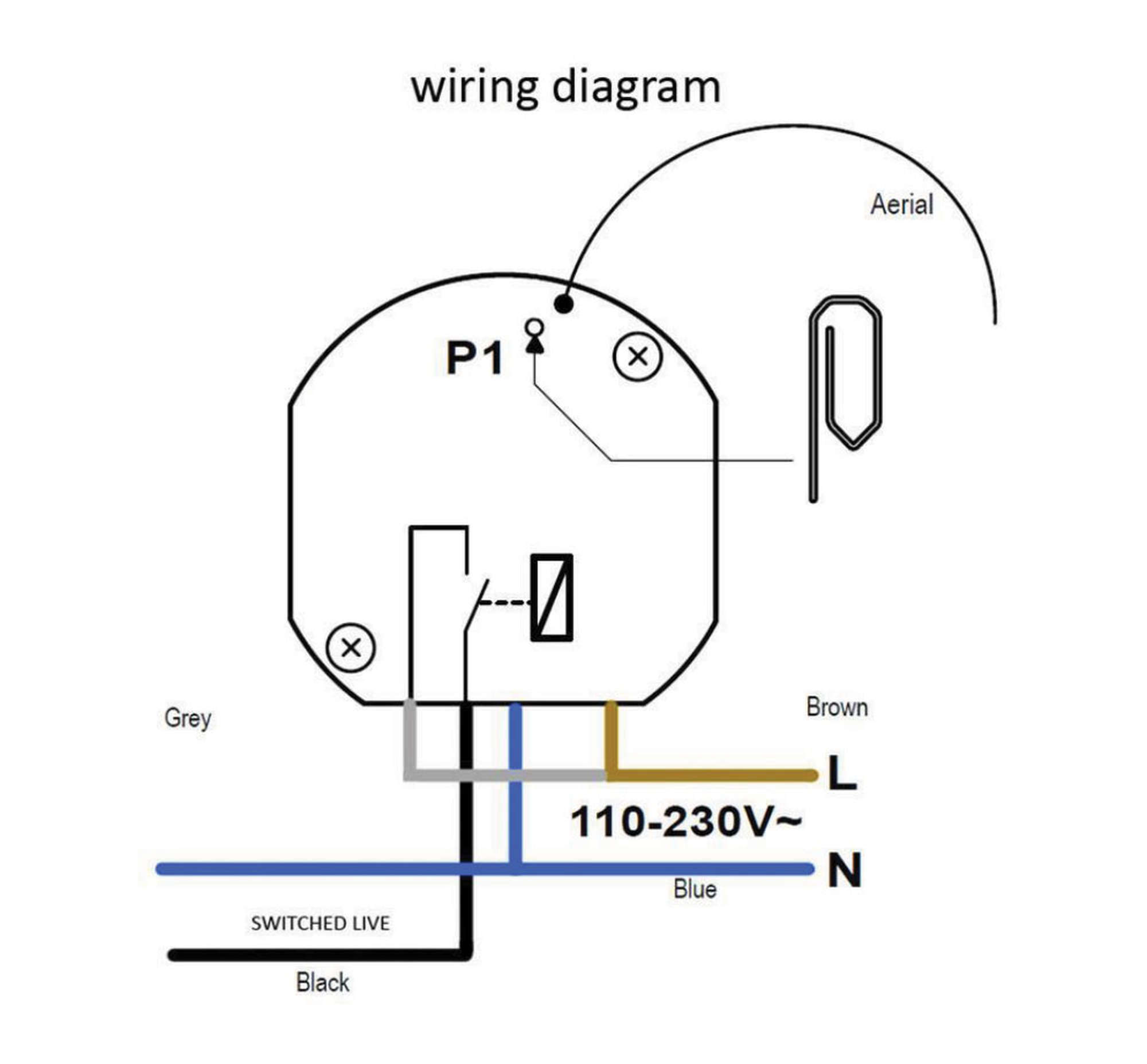

Can be used as On/Off switching or push to make switching. Simply wire permanent live to the first volt free terminal, with the other volt free terminal the switch live to the load. The unit also requires it’s own live and neutral connection as normal.
Programming Options
Option A) On/Off Switching – 1 button
Programming the receiver to a wise switch using this method will create an on and an off on the same button.
Option B) On/Off Switching – 2 button
Programming the receiver to a wise switch using this method will create an on and an off on separate buttons. (requires 2 button switch)
